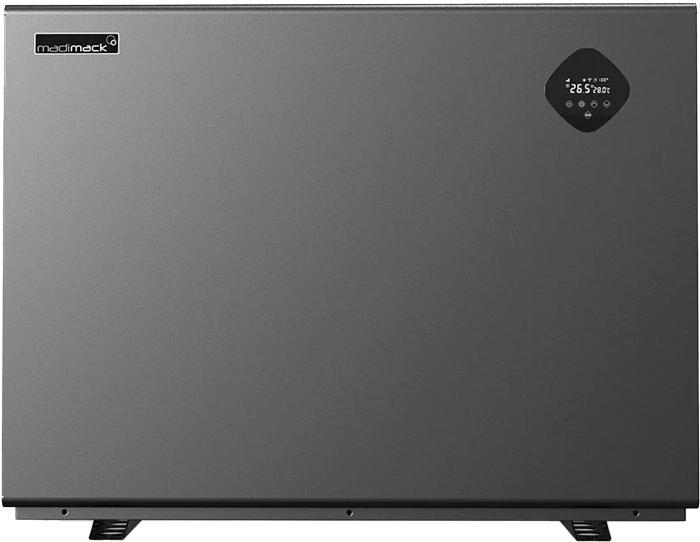

Elite V3 Heat Pumps
POOL INDUSTRY’S MOST ADVANCED HEAT PUMP
Industry first commercial grade centrifugal fan in residential unit.
Market leading efficiencies with COP up to 16.4.
Revolutionary design to improve ventilation requirements, efficiency & noise
POOL INDUSTRY’S MOST ADVANCED HEAT PUMP
Industry first commercial grade centrifugal fan in residential unit.
Market leading efficiencies with COP up to 16.4.
Revolutionary design to improve ventilation requirements, efficiency & noise.
The Elite V3 has been redesigned from the ground up to bring a revolutionised pool heating system to the Australian market. In conjunction with the newest inverter technology the unit delivers better airflow, higher efficiency, quieter operation and performance. The unit exclusively delivers market leading installation requirements, providing space saving options for Australian backyards. Engineered with durability in mind, the Elite V3 operates at optimal levels even in the most corrosive and erosive environments. The Elite V3 sets the standard for other pool heating solutions.
madimack Heat pump Brochure
-
Quietest Heat Pump Available
Patented material science that increases sound attenuation making the Elite V3 the quietest heat pump available. Sound is absorbed through the triple insulated compressor compartment and advanced engineering design.
-
User Friendly Interface
Elite V3's intuitive logic and componentry delivers unrivalled cold-air performance for truly 'all-season' heating. Smart, efficient & powerful with intuitive commissioning and monitoring built into a smart diamond display.
-
Centri-Flow Technology
Centri-Flow Performance is created by a commercial grade fan in a residential unit. The Elite V3 has the only true side air discharge with centrifugal fan technology, removing air-turbulance, back-pressure and noise with the perfect engineered 90 degree directional airflow.
-
Highest Efficiency Levels
Achieves market leading COP16.4
-
Power Supply
Allows for a 10AMP plug in an 11kW heat pump
-
Premier Service
Supported by Madimack's service and support pipeline
-
Unique Side Ventilation
Dramatically reduced ventilation requirements due to its finely engineered system, including unique side ventilation
-
Market Leading Warranties
25 years on titanium heat exchanger / 10 years on compressor / 5 years on all parts
Spec
| Model | MM-ESV3-110 | MM-ESV3-140 | MM-ESV3-170 | MM-ESV3-220 | MM-ESV3-270 | MM-ESV3-320 | MM-ESV3-400 |
|---|---|---|---|---|---|---|---|
| PERFORMANCE CONDITION: Air 27°C/ Water 27°C/ Humid. 80% | |||||||
| Max Heating capacity (kW) high speed | 11.0 | 13.8 | 17.0 | 22.0 | 26.9 | 31.8 | 40.5 |
| Energy efficiency mode (KW) mid speed | 8.8 | 10.4 | 13.0 | 17.5 | 20.6 | 26.8 | 34.5 |
| COP range | 16.2~7.3 | 16.0~7.4 | 16.1~7.1 | 16.4.~7.4 | 16.1~7.3 | 16.2~7.2 | 16.0~7.0 |
| PERFORMANCE CONDITION:Air 15°C/ Water 26°C/ Humid. 70% | |||||||
| Max Heating capacity (kW) high speed | 7.3 | 9.2 | 11.5 | 15.0 | 18.0 | 21.8 | 29.0 |
| Energy efficiency mode (KW) mid speed | 5.8 | 7.6 | 9.2 | 12.4 | 14.4 | 18.0 | 23.9 |
| COP range | 7.5~5.0 | 7.6~5.1 | 7.8~5.0 | 8.2~5.1 | 7.9~5.2 | 8.0~5.2 | 8.3~5.1 |
| PERFORMANCE CONDITION:Air 35°C/ Water 26°C/ Humid. 70% | |||||||
| Cooling capacity (kW) | 4.1 | 5.6 | 6.5 | 8.1 | 10.2 | 12.2 | 15.0 |
| TECHNICAL SPECIFICATIONS | |||||||
| Advised pool volume (m3) * | 20~45 | 30~55 | 35~65 | 40~80 | 50~95 | 60~120 | 85~160 |
| Operating air temperature (℃) | -15℃~43℃ | ||||||
| Compressor | Twin-rotary Mitsubishi DC Compressor | ||||||
| Heat exchanger | Twisted Titanium Heat Exchanger | ||||||
| Casing | Marine Grade Aluminum Alloy | ||||||
| Power sup | 230V 1Ph | 400V 3Ph | |||||
| Electrical connection | 10A Plug | 15A Plug | Hardwired | Hardwired | Hardwired | Hardwired | Hardwired |
| Rated input power (kW) | 0.21~1.55 | 0.25~1.92 | 0.31~2.44 | 0.40~3.05 | 0.49~3.8 | 0.60~4.63 | 0.79~6.1 |
| Rated input current (A) | 0.91~6.74 | 1.09~8.34 | 1.35~10.60 | 1.74~13.26 | 2.13~16.52 | 2.60~20.13 | 1.14~8.84 |
| Maximum input current (A) | 9.0 | 11.0 | 13.0 | 16.0 | 18.0 | 23.0 | 12 (3) |
| Sound level at 1m dB(A) | 36.3~44.5 | 36.5~45.9 | 39.3~46.7 | 39.5~49.8 | 39.8~50.2 | 40.3~50.8 | 40.6~51.3 |
| Sound level at 10m dB(A) | 16.3~24.5 | 16.5~25.9 | 19.3~26.7 | 19.5~29.8 | 19.8~30.2 | 20.3~30.8 | 20.6~31.3 |
| Advised water flow (L/min) ± 20% | 65 | 80 | 100 | 125 | 150 | 180 | 230 |
| Water connection (mm) | 40 | ||||||
| Net Weight (kg) | 66 | 73 | 75 | 91 | 114 | 142 | 160 |
| Net dimension LxWxH (mm) | 750*504*656 | 750*504*656 | 840*504*656 | 980*504*756 | 1135*514*756 | 1029*512*1107 | 1139*512*1106 |
